Highfield boat Owner's Manual

Download
Highfield Classic 260/290/310/340/360/380 Owner's Manual
Highfield Classic 260_290_310_340_360_38
Adobe Acrobat Document 600.6 KB
Download
Highfield Classic Deluxe 340/360/380 Owner's Manual
Highfield Classic Deluxe 340_360_380 Own
Adobe Acrobat Document 600.6 KB

Download
Highfield Deluxe 350/390/420/460/500/540 Owner's Manual
Highfield Deluxe 350_390_420_460_500_540
Adobe Acrobat Document 1.5 MB
Download
Highfield Ocean Master 350/390/420/460/500/540 Owner's Manual
Highfield Ocean Master 350_390_420_460_5
Adobe Acrobat Document 1.5 MB

Download
Highfield Roll Up 200_230_250_280 AM_SL 230_270_290_320 AL Owner's Manual
Highfield Roll Up 200_230_250_280 AM_SL 230_270_290_320 AL Owner's Manual
Highfield Roll Up 200_230_250_280 AM_SL
Adobe Acrobat Document 17.1 MB
Download
Highfield Ultralite 240_260_290_310_340 Owner's Manual
Highfield Ultralite 240_260_290_310_340 Owner's Manual
Highfield Ultralite 240_260_290_310_340
Adobe Acrobat Document 17.6 MB

HIGHFIELD Classic

Motor-rowing model with a rigid body and inflatable balloons (RiB).

HIGHFIELD Classic CL 360 N inflatable boat is for those who need a light and reliable weekend boat.

HIGHFIELD Classic CL 360 N has a length of 3.66 m with a width of 1.71 m.

The length of the cockpit is 2.73 m, the width is 0.79 m.

The mass of the boat is 66 kg.

 Maximum load capacity - 650 kg, capacity 6 people.

When used with a motor, its power should not exceed 25 hp.

HIGHFIELD Classic CL 360 N cylinders are made of five-layer reinforced PVC material VALMEX from Mehler Texnologies GmbH with a density of 1100 g / m2.

The inner layer is soft and helps to maintain tightness, the top serves as protection against wear and ultraviolet radiation.



The diameter of the cylinders of the inflatable boat is 44 cm, 3 airtight compartments.

Welds. Mooring protection is provided by a fender beam with a splash guard. The case is made of special marine aluminum 2.5 mm thick.

The metal is powder coated and is heat treated for better resistance to aggressive environments. The boat comes in the following colors: light gray, dark gray, black. The boat has a floor of the main material - painted aluminum.

The HIGHFIELD Classic CL 360 N comes with 1 hard seat with fixed mount.

Under the bench is a saddle bag, which, when fastened, forms a soft lining on the bank.

 Passenger safety The HIGHFIELD Classic CL 360 N is additionally provided with bottle handles.

The bottom along the keel and cylinder line is protected by a PVC profile.

The oars have a folding design, in the parking position they are fixed with the help of special holders.

There are carrying handles around the perimeter of the boat; On the nose there is an eye-grip.

Water from the cockpit can be removed using the drain valve.

The manufacturer (China) provides a guarantee for an aluminum case for 5 years, for seams and PVC material for 2 years, for other components and accessories - 12 months.

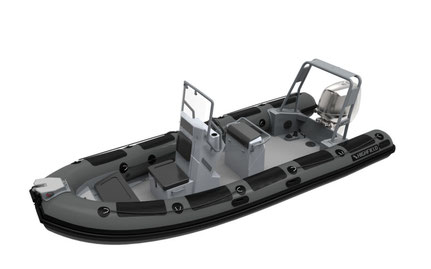

HIGHFIELD Ocean Master OM 540

Motor-rowing model with a rigid body and inflatable balloons.

Buying an HIGHFIELD Ocean Master OM 540 DL inflatable boat is for those who need a cruising RiB or an enhanced comfort tender.

The HIGHFIELD Ocean Master OM 540 DL is 5.40 meters long and 2.38 meters wide.

The length of the cockpit is 4.28 m, the width is 1.30 m.

The mass of the boat is 340 kg.

 Maximum load capacity - 1200 kg, capacity 12 people.

When used with a motor, its power should not exceed 115 hp.

HIGHFIELD Ocean Master OM 540 DL cylinders are made of five-layer reinforced PVC material VALMEX from Mehler Texnologies GmbH with a density of 1100 g / m2.

The inner layer is soft and helps to maintain tightness, the top serves as protection against wear and ultraviolet radiation.

The diameter of the cylinders of the inflatable boat is 52 cm, 6 airtight compartments. Welds. Mooring protection is provided by a fender beam with a splash guard.

The case is made of special marine aluminum with a thickness of 4 mm. The metal is powder coated and is heat treated for better resistance to aggressive environments. The boat comes in the following colors: light gray, dark gray, black.

The boat has a floor of the main material - painted aluminum.

The HIGHFIELD Ocean Master OM 540 DL comes with 1 hard seat with soft pad.

Passenger safety The HIGHFIELD Ocean Master OM 540 DL is additionally provided with bottle handles.

The bottom along the keel and cylinder line is protected by a PVC profile.

The oars have a folding design, in the parking position they are fixed with the help of special holders.

There are carrying handles around the perimeter of the boat; On the nose there is an eye-grip.

Water from the cockpit can be removed using the drain valve.

An anchor eye with a roller is installed on the nose.

A 90-liter fuel tank with a fuel level sensor is integrated in the housing.

The manufacturer (China) provides a guarantee for an aluminum case for 5 years, for seams and PVC material for 2 years, for other components and accessories - 12 months.
